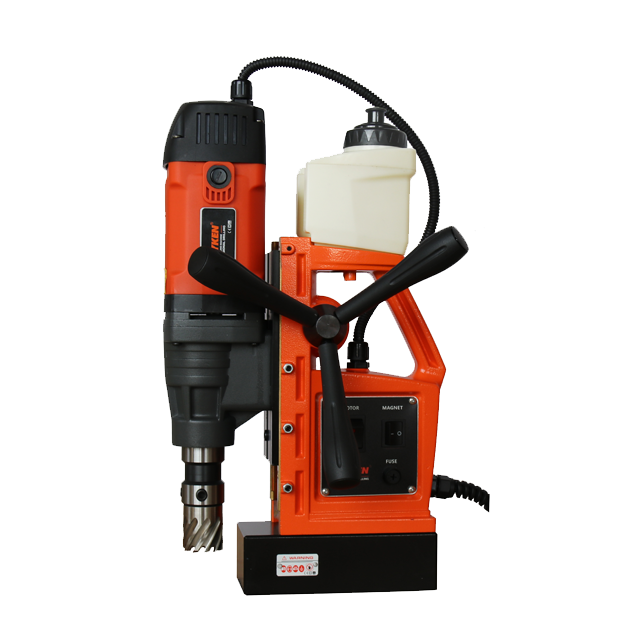

Magnetic Core Drill

hosts gear box fixed,high accuracy ,all die-cast magnesium alloy frame
light weight,built-in cooling system,small size

TECHNICAL PARAMETER

	Core drill dia(mm)	Rated Voltage(v)	Rated Frequency(Hz)	Rated Input Power(w)	No-load Speed(rpm)	Max attraction(N)	Cutting depth(mm)	Stroke(mm)	Cable Length(m)	Net/Gross Weight(kgs)	Magnet dimension(mm)	Packing Size(cm)
OND-35HD	35	110/220~	50-60	1550	100-830	14800	30	120	2.5	11/15	1668050	583818
OND-50HD	50	110/220~	50-60	1700	100-810	15600	35	130	2.5	11/15	1668050	583818
