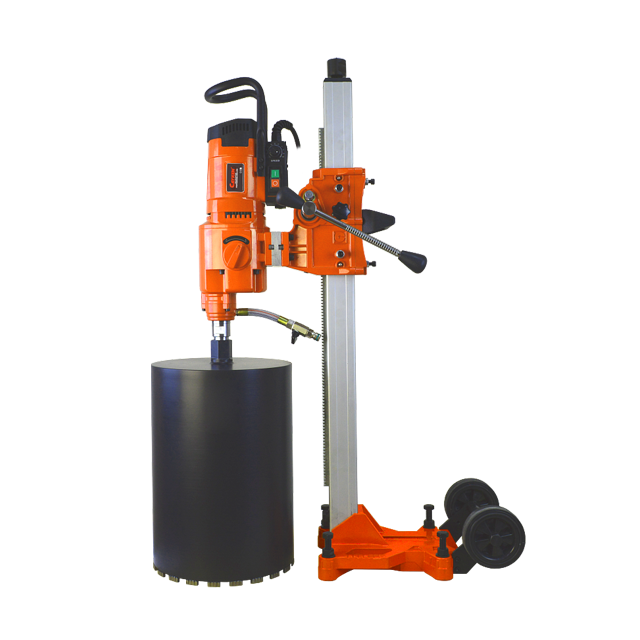

Diamond Core Drill
heavy drilling machine can drill accurately and deeply on hard materials
the second-class mechanical gear shift machine can drill holes from 50mm to 405mm to achieve the function of multipurpose
TECHNICAL PARAMETER
Concrete Drilling Range(mm) Rated Voltage(v) Rated Frequency(Hz)

Rated Input Power(w)

No-load Speed(rpm) Cable length(m) Borehole Depth(mm) Net/Gross Weight(Kgs)
Packing Size(cm)
OND-940 ~16”(~400) 110/220~ 50-60 5180 313 3.5 600 25.5/28.5 104*38*24 1000
OND-940E ~16”(~400) 110/220~ 50-60 5180 100-313 3.5 600 25.5/28.5 104*38*24 1000
OND-945 ~18”(~450) 110/220~ 50-60 5380 260 3.5 600 26.5/29.5 104*38*24 1000
OND-945E ~18”(~450) 110/220~ 50-60 5380 100-260 3.5 600 26.5/29.5 104*38*24 1000
OND-950 ~20”(~500) 110/220~ 50-60 5580 260 3.5 600 27.5/30.5 104*38*24 1000
OND-950E ~20”(~500) 110/220~ 50-60 5580 100-260 3.5 600 27.5/30.5 104*38*24 1000
