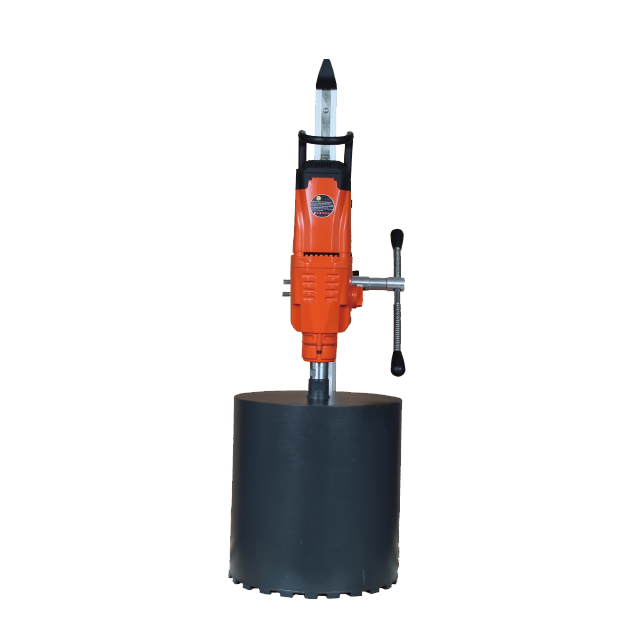

Diamond Core Drill
safety clutch and overload protection
water proof switch
soft-starting
gear box with  oil bath
fast detachable adjustble bracket
TECHNICAL PARAMETER
Concrete Drilling Range(mm) Rated Voltage(v) Rated Frequency(Hz)

Rated Input Power(w)

No-load Speed(rpm) Cable length(m) Borehole Depth(mm) Net/Gross Weight(Kgs)
Packing Size(cm)
DK-300/2
~12”(~300) 110/220~ 50-60 4980 360/570 3.5 600 28/30 104*38*24
DK-300/2E ~12”(~300) 110/220~ 50-60 4980 100-360/570 3.5 600 28/30 104*38*24
DK-300/3 ~12”(~300) 110/220~ 50-60 4980 360/540/720 3.5 600 28/30 104*38*24
DK-300/3E ~12”(~300) 110/220~ 50-60 4980 100-360/540/720 3.5 600 28/30 104*38*24
DK-350/2 ~14”(~350) 110/220~ 50-60 5280 310/480 3.5 600 28/30 104*38*24
DK-350/2E ~14”(~350) 110/220~ 50-60 5280 100-310/480 3.5 600 28/30 104*38*24
DK-350/3 ~14”(~350) 110/220~ 50-60 5280 300/450/600 3.5 600 28/30 104*38*24
DK-350/3E ~14”(~350) 110/220~ 50-60 5280 100-300/450/600 3.5 600 28/30 104*38*24
