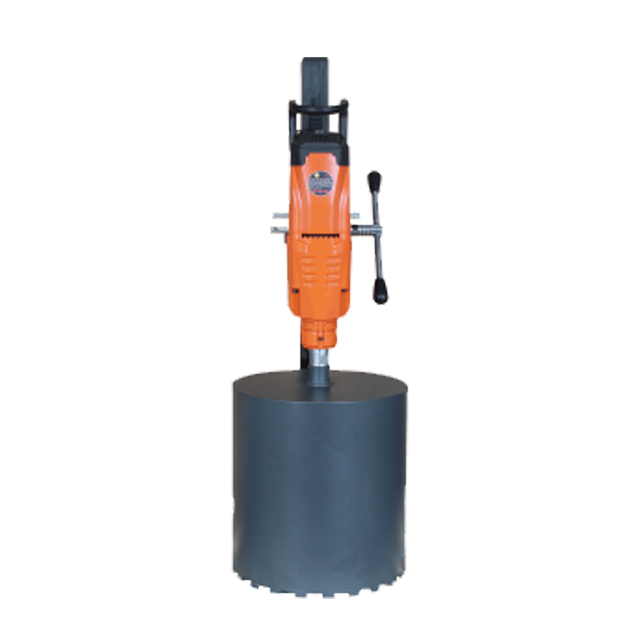

Diamond Core Drill
safety clutch and overload protection
water proof switch
soft-starting
gear box with  oil bath
fast detachable adjustble bracket
TECHNICAL PARAMETER
Concrete Drilling Range(mm) Rated Voltage(v) Rated Frequency(Hz)

Rated Input Power(w)

No-load Speed(rpm) Cable length(m) Borehole Depth(mm) Net/Gross Weight(Kgs)
Packing Size(cm)
DK-406
~16”(~406) 110/220~ 50-60 5580 280 3.5 600 28/30 104*38*24
DK-406E ~16”(~406) 110/220~ 50-60 5580 100-280 3.5 600 28/30 104*38*24
DK-450 ~18”(~450) 110/220~ 50-60 5680 240 3.5 600 29/31 104*38*24
DK-450E ~18”(~450) 110/220~ 50-60 5680 100-240 3.5 600 29/31 104*38*24
DK-505 ~20”(~506) 110/220~ 50-60 5780 220 3.5 600 20/30 104*38*24
DK-505E ~20”(~506) 110/220~ 50-60 5780 100-220 3.5 600 20/30 104*38*24
